Metal Pall Ring with High Load Elasticity

Metal pall ring is a cylinder whose height is same as its diameter. It has both a unique multiple-blade design and several windows open on its surface to enlarge the internal surface area and promotes the fluid-air exchange. Metal pall ring is commonly made of stainless steel or carbon steel. Compared with plastic pall ring, metal pall ring packing has higher mechanical strength and better mass transfer performance. The five most popular nominal diameters of metal pall ring, widely applied to industrial manufacture, are DN 16, DN 25, DN 38, DN 50 and DN 76 mm.

There is a piece of metal pall ring.
MPR-01: Metal pall ring is a cylinder whose height is same as its diameter.

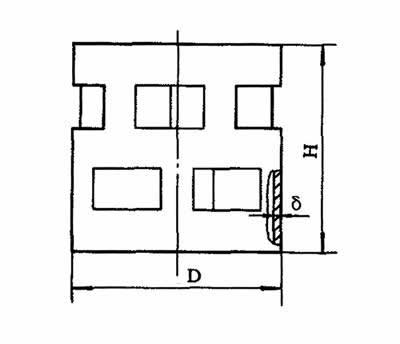

This is a structure diagram of metal pall ring from front view.
MPR-02: Metal pall ring is commonly made of stainless steel or carbon steel.

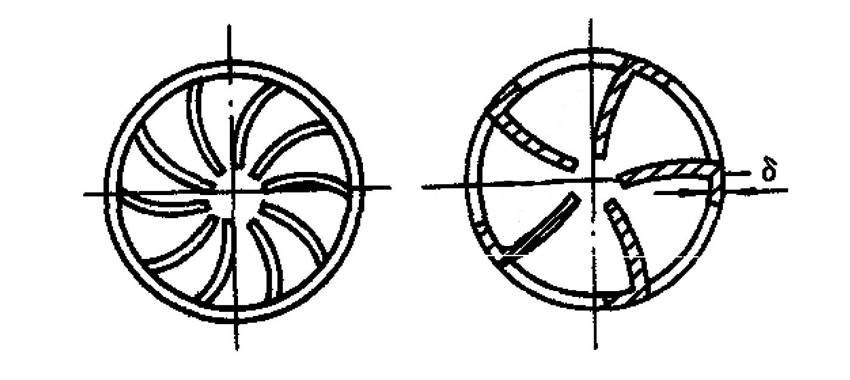

This is a structure diagram of metal pall ring from top view.
MPR-03: Metal pall ring has both a unique multiple-blade design and several windows open on its surface.
Specification - stainless steel pall ring
Model Nominal diameter (mm) Diameter × Height × Thickness
D × H × δ (mm)
Bulk number (m-3) Bulk density (kg/m3) Specific surface area (m2/m3) Void volume (m3/m3) Dry packing factor (m-1)
MPRS-01 DN 76 76 × 76 × 1.2 1830 308 71 0. 961 80
MPRS-02 DN 50 50 × 50 × 0.8 6500 314 109 0.960 124
MPRS-03 DN 38 38 × 38 × 0.6 15180 318 146 0. 959 165
MPRS-04 DN 25 25 × 25 × 0.5 51940 393 219 0. 950 255
MPRS-05 DN 16 16 × 16 × 0.3 214000 396 362 0.949 423
  • Materials: SS 304, SS 316, SS 316L.
  • Suitable temperature range: less than or equal to 400 °C.
Specification - carbon pall mini ring
Model Nominal diameter (mm) Diameter × Height × Thickness
D × H × δ (mm)
Bulk number (m-3) Bulk density (kg/m3) Specific surface area (m2/m3) Void volume (m3/m3) Dry packing factor (m-1)
MPRS-06 DN 76 76 × 76 × 1.5 1830 384 72 0. 951 84
MPRS-07 DN 50 50 × 50 × 1.0 6500 393 110 0.950 128
MPRS-08 DN 38 38 × 38 × 0.8 15180 424 149 0. 946 176
MPRS-09 DN 25 25 × 25 × 0.6 51940 471 223 0. 940 268
MPRS-10 DN 16 16 × 16 × 0.4 214000 527 371 0.933 457
Suitable temperature range: less than or equal to 350 °C.

Features

  • Popular random packing.
  • High flux.
  • High efficiency.
  • High load elasticity.
  • Excellent stain resistance.
  • Low pressure drop.

Application

  • Metal pall rings are widely used in kinds of separation, absorption, desorption and pressure reducing devices.
  • Metal pall rings are commonly applied to all sorts of decarbonization and system of synthetic ammonia.

Package

  • Covered with moisture-proof paper.
  • Packed in dry boxes which have enough strength to withstand impact.
