Plastic Pall Ring with Good Chemical Resistance

Plastic pall ring, having a great improvement on the raschig ring, is also a cylinder whose height is same as its diameter. Being different from metal pall ring, plastic pall ring is made of quality polypropylene, polyethylene and many other plastic materials. Plastic pall ring has the advantages of high flux, low resistance, high working efficiency, high operational flexibility and so forth. All of this advantages make plastic pall ring save packing volume and increase processing capacity.

This is a plastic pall ring on the green background.
PPR-01: Plastic pall ring is a cylinder whose height is same as its diameter.

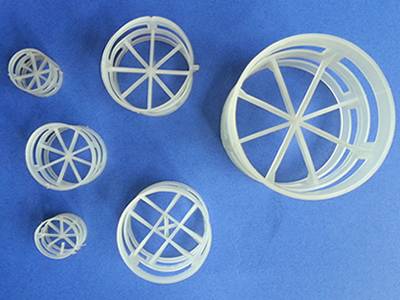

There are several plastic pall rings in different sizes.
PPR-02: Plastic pall ring is made of quality polypropylene, polyethylene, etc.

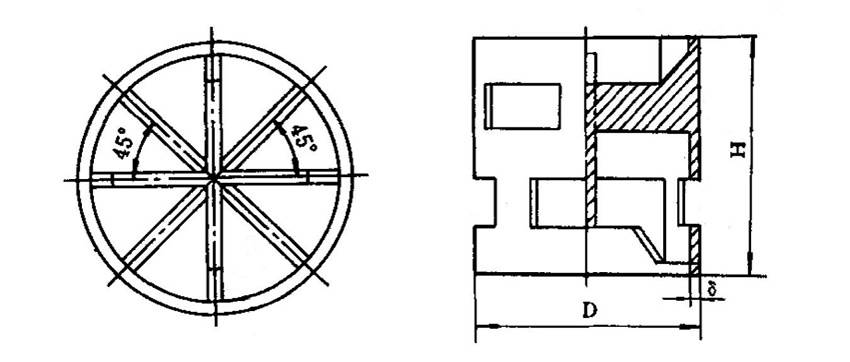

There are two structure diagrams of plastic pall ring from both top view and front view.
PPR-03: Plastic pall ring has the advantages of high flux, low resistance, high working efficiency, high operational flexibility and so forth.
Specification - plastic pall ring
Model Nominal diameter (mm) Diameter × Height × Thickness
D × H × δ (mm)
Bulk number (m-3) Bulk density (kg/m3) Specific surface area (m2/m3) Void volume (m3/m3) Dry packing factor (m-1)
MPRS-01 DN 76 76 × 76 × 2.6 1830 73 72 0. 920 92
MPRS-02 DN 50 50 × 50 × 1.5 6300 76 100 0.917 130
MPRS-03 DN 38 38 × 38 × 1.4 15800 82 151 0. 910 200
MPRS-04 DN 25 25 × 25 × 1.2 48300 85 213 0. 907 285
MPRS-05 DN 16 16 × 16 × 0.8 177600 91 274 0.900 376
  • Materials: PE (polyethylene), PP (polypropylene), RPP (reinforced polypropylene), PVC (polyvinyl chloride), CPVC (chlorinated polyvinyl chloride) and PVDF (polyvinylidene fluoride).
  • Suitable temperature range: less than or equal to 100 °C.

Features

  • High mass transfer efficiency.
  • Low pressure drop.
  • High flux.
  • High gas velocity.
  • Small resistance.
  • Large production capacity.
  • Good chemical resistance.

Application

  • Plastic pall ring can be applied for separating ethyl benzene, isooctane, methyl benzene in factories.
  • Plastic pall ring is widely used in kinds of separation, absorption, desorption and pressure reducing devices.
  • Metal pall ring is commonly applied to all sorts of decarbonization and system of synthetic ammonia.

Package

  • Plastic pall rings are packed in boxes lined with dry polyethylene film.
  • Plastic pall rings are packed in PP woven bags lined with PE film bag inside.
  • All of our packing bags are highly dustproof.
