Spray Nozzle Distributor Provides Wide Airflow Channels

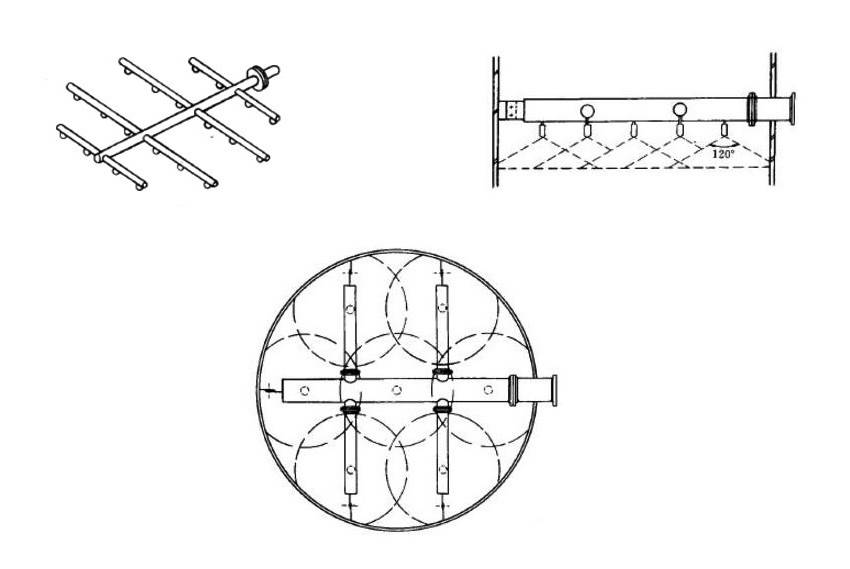

Spray nozzle distributor with compact structure, is a popular type of distributor used in packing towers. Under the pressure, spray nozzle distributor can distribute liquid on the tower packing through nozzles. It can provide wider airflow channels and higher spraying density, thus the spraying region of spray nozzle distributor is much bigger than which of the hole tubular distributor.
SND-01: Spray nozzle distributor is one of the most popular type of distributors.
SND-02: Spray nozzle distributor can provide high spraying density.
SND-03: Spray nozzle distributor has compact structure.
| Model | The inner diameter of tower (mm) | The inner diameter of main pipe (mm) | The number of branch on each side | The number of nozzles | Flow rate (m3/h) |
|---|---|---|---|---|---|
| SNDS-01 | 900 | 50 | 0 | 1 | 9.5 |
| SNDS-02 | 1000 | 50 | 0 | 1 | 13.6 |
| SNDS-03 | 1200 | 76 | 0 | 1 | 17.7 |
| SNDS-04 | 1300 | 76 | 0 | 1 | 21.8 |
| SNDS-05 | 1500 | 76 | 0 | 1 | 27.3 |
| SNDS-06 | 1800 | 100 | 2 | 7 | 41 |
| SNDS-07 | 2000 | 100 | 2 | 7 | 54.6 |
| SNDS-08 | 2400 | 100 | 2 | 7 | 68.2 |
| SNDS-09 | 2700 | 152 | 2 | 7 | 88.6 |
| SNDS-10 | 3000 | 152 | 2 | 7 | 109.1 |
Features
- Easy to replace.
- High spraying density.
- Compact structure.
- Covering large tower section.
Application
Spray nozzle distributor is being used more for the process of heat exchange and scouring. It is also widely applied in crude distillation tower in refinery, vacuum tower and fractionating tower in other fields.
Package
Packed in carton cases or upon on your requests.
