List of Multifarious Tower Internals
Metal Perforated Plate Corrugated Packing
Metal perforated plate corrugated packing is a kind of structured packing made of arranged web pieces and it is widely used in industry of fine chemicals, etc.
Metal Wire Gauze Structured Packing
Metal wire gauze structured packing is an universal type of packing composed by several mesh plate corrugated sheets which are vertical arranged in disks.
Metal cascade mini ring is commonly a cylinder with several windows open on the surface and a trumpet-shaped expanded opening at one end.
Metal pall ring which has both a unique multiple-blade design and several windows open on its surface, is widely used in separation and absorption devices.
Metal intalox saddle generally made of stainless steel or carbon steel, is composed by annulus and saddle and is widely used in chemical industry, etc.
Metal rasching ring whose height is same as diameter, has a simple hollow cylindrical shape and is widely applied to drying, absorption & scrubbing towers.
Metal conjugate ring, adopting conjugate curved structure with suitable length diameter, is widely used in various extraction and distillation applications.
Metal mellaring ring shaping like a wreath, makes alternate arrangements for eight-arc rings and four-arc rings & can be applied in purification towers.
Metal super mini ring, whose height-diameter ratio is about 1/3, is an annular random packing with short body and open-cell design.
Plastic teller rosette in oblate shape, is arranged by 12 annuluses according to their radial directions and can be used in water treatment process.
Plastic pall ring, made of quality polypropylene, polyethylene and many other plastic materials, is a cylinder whose height is same as its diameter.
Plastic cascade mini ring adopting trumpet-shaped design with several windows open on the surface, can be used in petroleum, chemical and coal gas industry.
Polyhedron empty ball, composed by two hemispheres, is a spherical random packing made of polyvinyl chloride and is widely used for packing towers.
Plastic rasching ring made of PE, PP, PVC and other quality plastics, is widely applied in petrochemical engineering and water treatment processing.
Plastic intalox saddle, composed by annulus and saddle, is made of heat-resistant and anti-corrosion plastic and is widely used in the packing towers.
Floating valves tray has many holes and valves on the surface and it can be used in applications where higher turndown ratios are required.

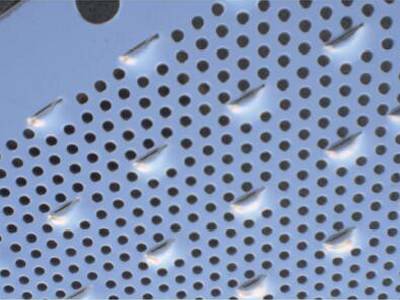

Guided sieve tray whose screen-aperture diameter is typically 0.5 inch, is a basic type of fractionation tray and can be used in packing towers.

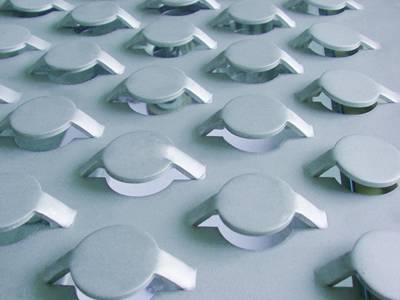

Fixed valves tray is good at vapor-liquid distribution and can be used as column internal for energy transfer between gas and liquid, or liquid and liquid.
Trough pan distributor, combining the advantages of both trough distributor and pan distributor, are installed on the top of packing towers.
Two-Stage Trough Liquid Distributor
Two-Stage trough liquid distributor composed by major trough and secondary trough, is an ideal choice for separation, emulsions, fouling or contaminated liquid.
Spray nozzle distributor can distribute liquid on the tower packing through nozzles under pressure and is widely applied in crude distillation towers.
Wire mesh demister, composed by wire meshes, grids, spacer bars and strutting pieces, can guarantee the efficiency of the tower tray and reduce plate spacing.
Wave type wire mesh demister is a special kind of demister with tilted wire mesh blocks and is widely used in drying towers, absorption towers and so forth.
Drawer type demister is mainly formed by several rectangular mesh blocks, spacer bars and grids, is generally used in chemical, metallurgical, light industries, etc.
PTFE demister, a kind of vapor liquid separating device, is designed available for installation in either horizontal or vertical gas flow.
