Wire Mesh Demister with High Factor of Porosity & Low Head Loss

Wire mesh demister (short for also known as mesh demister or mesh mist eliminator) is mainly composed by wire meshes, grids, spacer bars and strutting pieces. Being applied, wire mesh demister can separate drops of the diameter between 3 µm to 5 µm, guarantee the efficiency of the tower tray and reduce plate spacing. Being made of quality stainless steel wire, titanium wire or nickel wire, wire mesh demister has a wide range of applications.

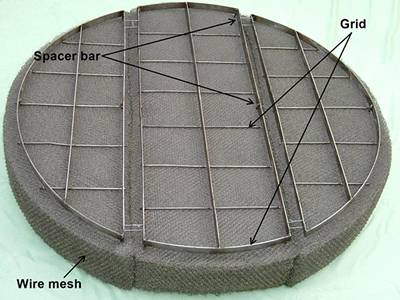

There is a schematic diagram of wire mesh demister.

WMD-01: Wire mesh demister is mainly composed by wire meshes, grids, spacer bars and strutting pieces.

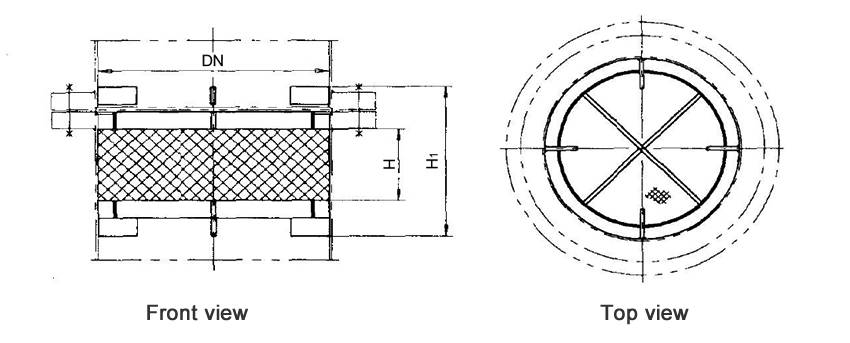

Structure diagrams of above-installed wire mesh demister whose DN is 300 to 600 mm, are from front view and top view.

WMD-02: Above-installed wire mesh demister (DN 300 - 600)

Specification - above-installed wire mesh demister (DN 300 - 600)
Model	Nominal diameter (mm)	Size (mm)			Weight (kg)
Model	Nominal diameter (mm)	H	H₁	D	Wire mesh	Grid & spacer bar	Strutting piece
WMDS-01	300	100	210	300	1.06	1.67	0.19
WMDS-02	300	150	260	300	1.59	1.72	0.19
WMDS-03	400	100	210	400	1.83	2.27	0.19
WMDS-04	400	150	260	400	2.75	2.32	0.19
WMDS-05	500	100	210	500	2.81	2.89	0.19
WMDS-06	500	150	260	500	4.22	2.94	0.19
WMDS-07	600	100	210	600	3.99	3.47	0.19
WMDS-08	600	150	260	600	5.99	3.52	0.19

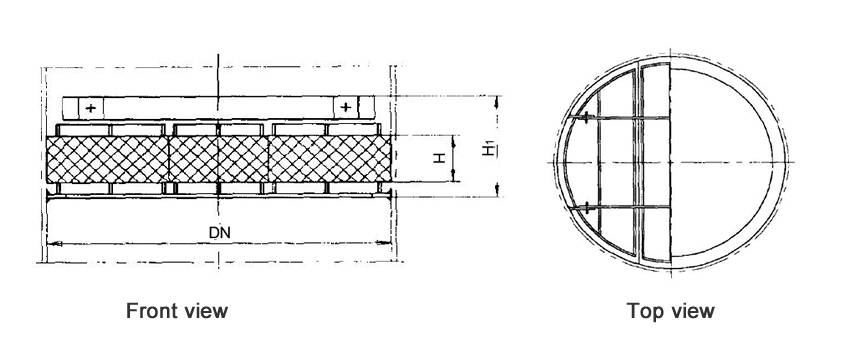

Structure diagrams of above-installed wire mesh demister whose DN is 700 to 1600 mm, are from front view and top view.

WMD-03: Above-installed wire mesh demister (DN 700 - 1600)

Specification - above-installed wire mesh demister (DN 700 - 1600)
Model	Nominal diameter (mm)	Size (mm)			Weight (kg)
Model	Nominal diameter (mm)	H	H₁	D	Wire mesh	Grid & spacer bar	Strutting piece
WMDS-09	700	100	218	620	5.77	8.60	8.63
WMDS-10	700	150	268	620	8.67	8.87	8.63
WMDS-11	800	100	218	720	8.86	8.46	9.88
WMDS-12	800	150	268	720	13.30	8.63	9.88
WMDS-13	900	100	218	820	11.15	11.32	11.0
WMDS-14	900	150	268	820	16.73	11.49	11.0
WMDS-15	1000	100	218	920	13.69	12.42	12.12
WMDS-16	1000	150	268	920	20.55	12.61	12.12
WMDS-17	1100	100	218	1020	16.32	13.86	13.17
WMDS-18	1100	150	268	1020	24.48	14.05	13.17
WMDS-19	1200	100	218	1120	19.36	15.74	14.49
WMDS-20	1200	150	268	1120	29.46	15.93	14.49
WMDS-21	1300	100	228	1220	22.97	22.84	19.02
WMDS-22	1300	150	278	1220	34.47	23.15	19.02
WMDS-23	1400	100	228	1320	26.59	24.36	20.69
WMDS-24	1400	150	278	1320	39.90	24.58	20.69
WMDS-25	1500	100	228	1420	30.47	26.67	22.43
WMDS-26	1500	150	278	1420	45.72	26.99	22.43
WMDS-27	1600	100	228	1520	33.76	31.07	23.50
WMDS-28	1600	150	278	1520	50.64	31.43	23.50

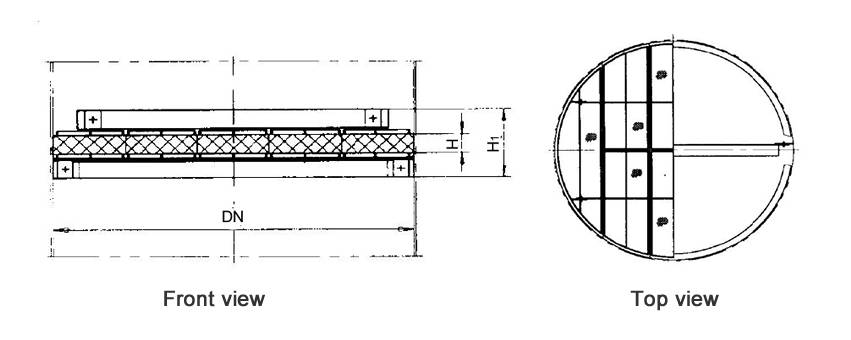

Structure diagrams of above-installed wire mesh demister whose DN is 1700 to 3200 mm, are from front view and top view.

WMD-04: Above-installed wire mesh demister (DN 1700 - 3200)

Specification - above-installed wire mesh demister (DN 1700 - 3200)
Model	Nominal diameter (mm)	Size (mm)			Weight (kg)
Model	Nominal diameter (mm)	H	H₁	D	Wire mesh	Grid & spacer bar	Strutting piece
WMDS-29	1700	100	360	1600	39	35	67
WMDS-30	1700	150	410	1600	53	36	67
WMDS-31	1800	100	360	1700	44	36	71
WMDS-32	1800	150	410	1700	66	37	71
WMDS-33	1900	100	360	1800	49	40	75
WMDS-34	1900	150	410	1800	73	41	75
WMDS-35	2000	100	360	1900	54	43	79
WMDS-36	2000	150	410	1900	81	44	79
WMDS-37	2200	100	360	2100	65	56	87
WMDS-38	2200	150	410	2100	98	57	87
WMDS-39	2400	100	360	2300	78	67	95
WMDS-40	2400	150	410	2300	118	68	95
WMDS-41	2600	100	360	2500	91	73	103
WMDS-42	2600	150	410	2500	136	74	103
WMDS-43	2800	100	385	2700	106	85	139
WMDS-44	2800	150	435	2700	158	86	139
WMDS-45	3000	100	385	2900	121	99	149
WMDS-46	3000	150	435	2900	182	100	149
WMDS-47	3200	100	385	3100	138	111	159
WMDS-48	3200	150	435	3100	207	112	159

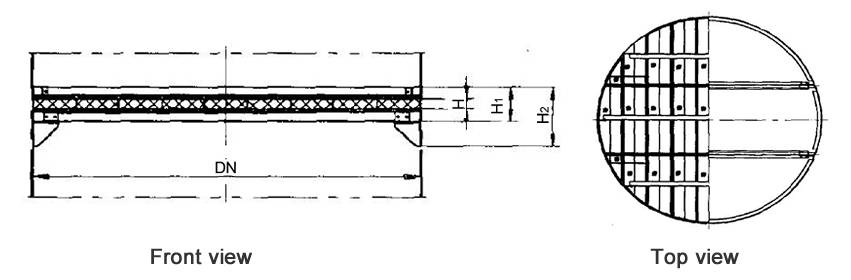

Structure diagrams of above-installed wire mesh demister whose DN is 3400 to 4800 mm, are from front view and top view.

WMD-05: Above-installed wire mesh demister (DN 3400 - 4800)

Specification - above-installed wire mesh demister (DN 3400 - 4800)
Model	Nominal diameter (mm)	Size (mm)				Weight (kg)
Model	Nominal diameter (mm)	H	H₁	H₂	D	Wire mesh	Grid & spacer bar	Strutting piece
WMDS-49	3400	100	350	600	3280	156	126	312
WMDS-50	3400	150	400	650	3280	234	127	312
WMDS-51	3600	100	350	600	3480	175	139	315
WMDS-52	3600	150	400	650	3480	262	141	315
WMDS-53	3800	100	350	600	3680	194	159	329
WMDS-54	3800	150	400	650	3680	292	162	329
WMDS-55	4000	100	350	600	3880	216	176	345
WMDS-56	4000	150	400	650	3880	323	177	345
WMDS-57	4200	100	350	600	4080	239	189	359
WMDS-58	4200	150	400	650	4080	359	192	359
WMDS-59	4400	100	350	600	4280	259	202	374
WMDS-60	4400	150	400	650	4280	391	204	374
WMDS-61	4600	100	350	600	4480	285	224	401
WMDS-62	4600	150	400	650	4480	427	227	401
WMDS-63	4800	100	350	600	4680	310	243	414
WMDS-64	4800	150	400	650	4680	465	245	414

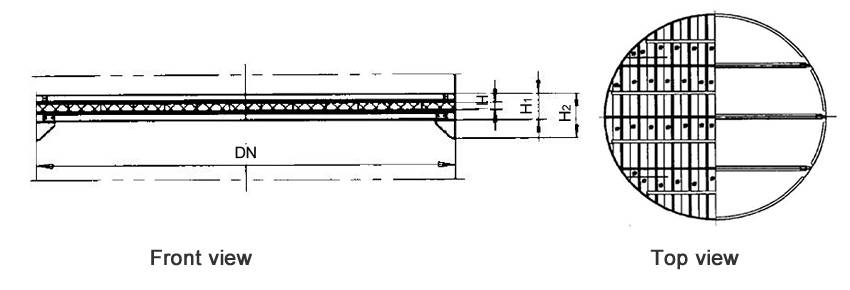

Structure diagrams of above-installed wire mesh demister whose DN is 5000 to 5200 mm, are from front view and top view.

WMD-06: Above-installed wire mesh demister (DN 5000 - 5200)

Specification - above-installed wire mesh demister (DN 5000 - 5200)
Model	Nominal diameter (mm)	Size (mm)				Weight (kg)
Model	Nominal diameter (mm)	H	H₁	H₂	D	Wire mesh	Grid & spacer bar	Strutting piece
WMDS-65	5000	100	350	600	4880	337	266	550
WMDS-66	5000	150	400	650	4880	505	269	550
WMDS-67	5200	100	350	600	5080	364	283	569
WMDS-68	5200	150	400	650	5080	546	286	569

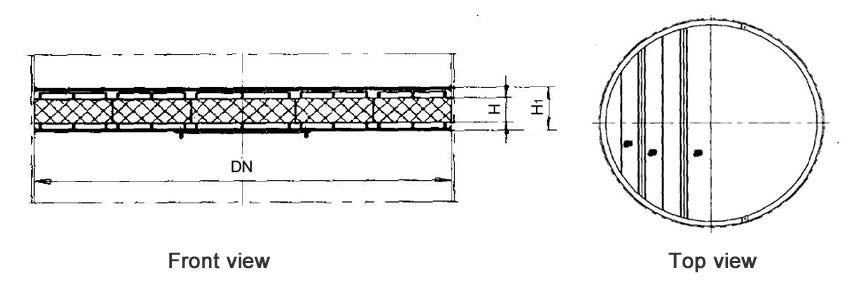

Structure diagrams of below-installed wire mesh demister whose DN is 700 to 1600 mm, are from front view and top view.

WMD-07: Below-installed wire mesh demister (DN 700 - 1600)

Specification - below-installed wire mesh demister (DN 700 - 1600)
Model	Nominal diameter (mm)	Size (mm)			Weight (kg)
Model	Nominal diameter (mm)	H	H₁	D	Wire mesh	Grid & spacer bar	Strutting piece
WMDS-69	700	100	176	620	5.77	8.60	12.47
WMDS-70	700	150	226	620	8.67	8.87	12.47
WMDS-71	800	100	176	720	8.86	8.46	14.54
WMDS-72	800	150	226	720	13.30	8.63	14.54
WMDS-73	900	100	176	820	11.15	11.32	16.11
WMDS-74	900	150	226	820	16.73	11.49	16.11
WMDS-75	1000	100	176	920	13.69	12.42	17.78
WMDS-76	1000	150	226	920	20.55	12.61	17.78
WMDS-77	1100	100	176	1020	16.32	13.86	19.27
WMDS-78	1100	150	226	1020	24.48	14.05	19.27
WMDS-79	1200	100	176	1120	19.36	15.74	20.85
WMDS-80	1200	150	226	1120	29.46	15.93	20.85
WMDS-81	1300	100	176	1220	22.97	22.84	22.60
WMDS-82	1300	150	226	1220	34.47	23.15	22.60
WMDS-83	1400	100	176	1320	26.59	24.36	24.19
WMDS-84	1400	150	226	1320	39.90	24.58	24.19
WMDS-85	1500	100	176	1420	30.47	26.67	25.76
WMDS-86	1500	150	226	1420	45.72	26.99	25.76
WMDS-87	1600	100	176	1520	33.76	31.07	26.95
WMDS-88	1600	150	226	1520	50.64	31.43	26.98

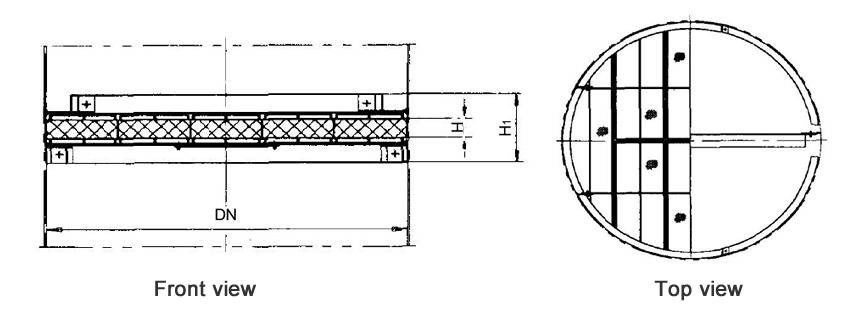

Structure diagrams of below-installed wire mesh demister whose DN is 1700 to 3200 mm, are from front view and top view.

WMD-08: Below-installed wire mesh demister (DN 1700 - 3200)

Specification - below-installed wire mesh demister (DN 1700 - 3200)
Model	Nominal diameter (mm)	Size (mm)			Weight (kg)
Model	Nominal diameter (mm)	H	H₁	D	Wire mesh	Grid & spacer bar	Strutting piece
WMDS-89	1700	100	370	1600	39	35	91
WMDS-90	1700	150	420	1600	53	36	91
WMDS-91	1800	100	370	1700	44	36	97
WMDS-92	1800	150	420	1700	66	37	97
WMDS-93	1900	100	370	1800	49	40	101
WMDS-94	1900	150	420	1800	73	41	101
WMDS-95	2000	100	370	1900	54	43	107
WMDS-96	2000	150	420	1900	81	44	107
WMDS-97	2200	100	370	2100	65	56	118
WMDS-98	2200	150	420	2100	98	57	118
WMDS-99	2400	100	370	2300	78	67	128
WMDS-100	2400	150	420	2300	118	68	128
WMDS-101	2600	100	370	2500	91	73	138
WMDS-102	2600	150	420	2500	136	74	138
WMDS-103	2800	100	395	2700	106	85	177
WMDS-104	2800	150	445	2700	158	86	177
WMDS-105	3000	100	395	2900	121	99	189
WMDS-106	3000	150	445	2900	182	100	189
WMDS-107	3200	100	395	3100	138	111	201
WMDS-108	3200	150	445	3100	207	112	201

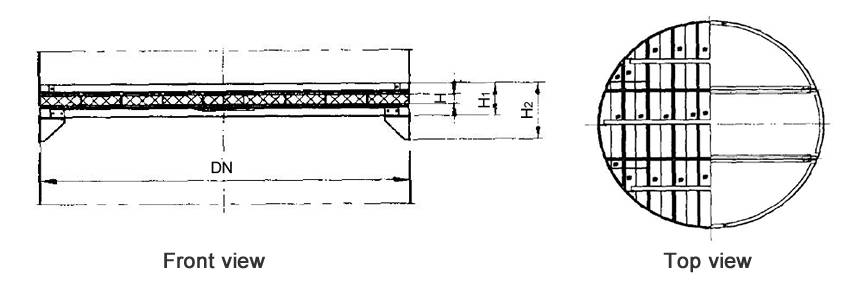

Structure diagrams of below-installed wire mesh demister whose DN is 3400 to 4800 mm, are from front view and top view.

WMD-09: Below-installed wire mesh demister (DN 3400 - 4800)

Specification - below-installed wire mesh demister (DN 3400 - 4800)
Model	Nominal diameter (mm)	Size (mm)				Weight (kg)
Model	Nominal diameter (mm)	H	H₁	H₂	D	Wire mesh	Grid & spacer bar	Strutting piece
WMDS-109	3400	100	350	600	3280	156	126	369
WMDS-110	3400	150	400	650	3280	234	127	369
WMDS-111	3600	100	350	600	3480	175	139	372
WMDS-112	3600	150	400	650	3480	262	141	372
WMDS-113	3800	100	350	600	3680	194	159	389
WMDS-114	3800	150	400	650	3680	292	162	389
WMDS-115	4000	100	350	600	3880	216	176	428
WMDS-116	4000	150	400	650	3880	323	177	428
WMDS-117	4200	100	350	600	4080	239	189	434
WMDS-118	4200	150	400	650	4080	359	192	434
WMDS-119	4400	100	350	600	4280	259	202	443
WMDS-120	4400	150	400	650	4280	391	204	443
WMDS-121	4600	100	350	600	4480	285	224	473
WMDS-122	4600	150	400	650	4480	427	227	473

Features

Simple& compact structure.
Light weight.
High factor of porosity & low head loss.
Great contact surface area.
High removing foam ratio.
Easy to install, operate and repair.
Long service life.

Application

Wire mesh demister is widely applied for gas-liquid separation process in oil, chemical, medicine, sulfuric acid, metallurgical, mechanical, environment protection and light industries.

Package

Packed in dry boxes or according to customer' requirements.
